Shutter Door Price in Egypt 2026: Cost per m², Types & Installation

shutter door prices in Egypt typically range from 1,800 EGP to 5,500+ EGP per square meter (m²) in 2026. Complete motorized installations cost more. Final turn-key quotations also include the motor operator, control accessories, safety devices, and on-site structural mounting.

Square-meter rates alone do not determine the total project investment. A standard 3 × 3 m retail shutter requires different motor sizing than a heavy industrial loading bay. Curtain dead-load, daily operating frequency, and site accessibility directly shape the final cost.

This 2026 guide breaks down shutter door prices in Egypt across steel, aluminum, and transparent polycarbonate systems. Explore baseline fabrication rates, motor selection criteria, installation scopes, and realistic project budgets below.

Shutter Door Prices in Egypt 2026 Summary

Shutter doors are custom-engineered to match clear opening dimensions and operational requirements across commercial and industrial facilities. The table below outlines indicative 2026 baseline fabrication budget ranges across standard classifications:

Shutter Door Classification	Primary Material & Profile	Compatible Drive Mechanism	Indicative Fabrication Price (EGP / m²)	Typical Commercial Application
Solid Steel Shutter Doors	0.8 mm – 1.0 mm Galvanized Steel	Central Drum Motor (Spring-Balanced)	1,800 – 3,200 EGP	Warehouses, factory perimeters, and service bays requiring opacity and impact resistance.
Micro-Perforated Steel Shutters	0.8 mm – 1.0 mm Perforated Steel	Central Motor or Industrial Side Motor	2,200 – 4,000 EGP	Retail shopping malls, bank storefronts, and showrooms requiring display visibility and airflow.
Heavy-Duty Industrial Steel	1.2 mm – 1.5 mm Curved Structural Steel	Direct-Drive Industrial Side Motor	3,500 – 5,500+ EGP	Wide logistics loading bays (>6 m span), distribution hubs, and high-wind perimeters.
Extruded Aluminum Shutters	Heavy Extruded Solid / Punched Profile	Central or Tubular Motor	Quoted by Specification	Architectural storefronts, pharmaceutical facilities, and coastal sites requiring lightweight corrosion resistance.
Transparent Polycarbonate Shutters	Impact-Resistant Polycarbonate Slats	Central or Side Motor	Quoted by Specification	High-end mall retail entrances and luxury showrooms requiring maximum display transparency.

Gatechs Budgeting Note: The figures above represent indicative planning estimates based on typical Gatechs configurations, not fixed retail rates. Complete turn-key quotations depend on exact opening dimensions, motor capacity, safety accessories, and site installation conditions.

Important: The EGP/m² figures above refer primarily to shutter curtain fabrication and standard mechanical components. Motorization, control systems, safety devices, structural modifications, and installation can increase the total project cost significantly.

How Much Does a Shutter Door Cost in Egypt?

Understanding the total cost of a shutter door requires separating baseline material fabrication from turn-key motorization and installation services:

• Base m² Fabrication (Included in base rate): Roll-formed galvanized steel curtain slats, vertical guide side channels with low-friction PVC weatherstripping, and reinforced bottom profile rails with rubber sealing gaskets.
• Mechanical & Axle Assembly: Standard spring-balanced barrel shafts for central motors are included where specified; heavy industrial barrel assemblies are sized and priced per dead-load and span.
• Automation & Controls (Separate line items): Central drum or industrial side motors, control panels, push-button stations, keyed switches, and encoded remote transmitters.
• Safety Devices (Project dependent): Optical photocells, wireless bottom safety edges, and anti-drop safety brakes.
• On-Site Installation & Commissioning: Precision mechanical mounting, electrical connections, and travel-limit calibration.
• Client Scope Exclusions: Dedicated primary power supplies, auxiliary structural steel lintels, and masonry modifications.

Shutter Door Cost by Type in Egypt

Selecting the right shutter door profile depends on operational priorities, security levels, and architectural preferences:

Solid Galvanized Steel Shutters

Typical fabrication range: 1,800 – 3,200 EGP/m²

The industry standard for cost-effective physical protection. These doors provide complete visual blockout, high impact resistance, and weather durability for warehouses, factories, and service entrances.

Micro-Perforated Steel Shutters

Typical fabrication range: 2,200 – 4,000 EGP/m²

Engineered with precision micro-perforations. They allow natural airflow and showcase illumination after hours while providing robust perimeter security for retail stores, banks, and mall outlets.

Heavy-Duty Industrial Steel Shutters

Typical fabrication range: 3,500 – 5,500+ EGP/m²

Manufactured from thick curved steel slats (1.2 mm to 1.5 mm) with wind-lock side guides. Built to secure oversized structural spans (>6 m) and high-traffic logistics loading docks.

Extruded Aluminum Shutters

Pricing: Quoted by specification

A premium, lightweight alternative offering natural corrosion resistance and smooth, quiet operation. Ideal for coastal commercial facilities and modern architectural facades.

Transparent Polycarbonate Shutters

Pricing: Quoted by specification

Constructed from impact-resistant transparent composite slats linked by aluminum profiles. Delivers maximum showroom transparency while keeping retail store perimeters fully secured.

For a more detailed comparison of shutter configurations, materials, and applications, see our guide to types of shutter doors in Egypt.

Which Shutter Door Is Best for Your Application?

Matching the shutter configuration to your building type ensures reliable performance and budget optimization:

Commercial Application	Recommended Configuration	Primary Operational & Engineering Rationale
Retail Stores & Malls	Micro-Perforated Steel (0.8 mm – 1.0 mm)	Maintains after-hours showcase visibility and natural ventilation while providing perimeter protection.
Banks & Financial Branches	Solid Galvanized Steel (1.0 mm – 1.2 mm)	Delivers full visual privacy and high physical resistance against unauthorized access.
Industrial Warehouses	Solid Galvanized Steel (1.2 mm – 1.5 mm)	Provides reliable dust containment, weather resistance, and structural durability for wide spans.
High-Frequency Factory Bays	Heavy-Duty Steel with Industrial Side Motor	Engineered for continuous daily cycling, heavy dead-loads, and integrated safety systems.
Coastal Facilities (Alexandria / Red Sea)	Heavy Galvanized / Powder-Coated Finish	Offers enhanced protection against salt spray humidity, atmospheric corrosion, and high coastal winds.

What Factors Affect Shutter Door Prices in Egypt?

Several mechanical and site variables determine the final quotation for a shutter door installation:

• Opening Dimensions & Span: Larger surface areas require more raw material. Wider spans also need heavier barrel pipes to prevent deflection under curtain load.
• Material Choice & Slat Gauge: Steel slat thickness (0.8 mm to 1.5 mm) directly impacts curtain weight, wind resistance, and base material costs.
• Perforation Styling: Solid interlocking slats involve standard roll-forming, whereas micro-perforated profiles require additional precision punching operations.
• Motor Drive Classification: Direct-drive industrial side motors equipped with chain hoists represent a higher investment than spring-balanced central drum motors.
• Daily Operating Frequency (Duty Cycle): High-traffic logistics bays require continuous-rated operators and heavy-duty bearing assemblies.
• Corrosion Protection: Standard hot-dip galvanization provides baseline protection, while coastal sites benefit from additional electrostatic powder coating.
• Site Installation Complexity: Headroom clearance, side jamb accessibility, and specialized scaffolding requirements for elevated openings.

Shutter Door Motor Selection

Selecting the right motor drive ensures reliable daily cycling and prevents premature mechanical failure:

• Central Drum Motors (e.g., ACM): Mounted directly onto the central axle alongside counterbalance torsion springs. They are well suited for standard retail storefronts with moderate daily usage. Emergency operation is handled via an armored manual release cable.
• Direct-Drive Industrial Side Motors (e.g., Jielong / FAAC): External heavy-duty units driving the barrel assembly via high-tensile drive sprockets and roller chains. They are engineered for large spans and heavy curtain assemblies. They feature an integrated manual chain hoist for smooth operation during power cuts.

To compare torque capacities and drive specifications, consult our engineering guide on commercial and industrial shutter door motors.

Example Shutter Door Project Costs (Illustrative Scenarios)

The following examples illustrate typical budget structures and do not constitute a formal quotation. Final pricing requires an engineering site survey.

• Scenario A — Typical Retail Storefront:
  • Clear Dimensions: 3.5 m Width × 3.0 m Height = 10.5 m²
  • Curtain Specification: 0.8 mm Micro-Perforated Galvanized Steel profile (Base fabrication: 23,100 – 33,600 EGP).
  • Drive Mechanism: Central drum motor with spring-assisted barrel, controls, and manual external key release.
  • Illustrative Turn-Key Budget: 34,000 – 48,000 EGP (Includes curtain fabrication, central motor kit, control accessories, and professional installation).
• Scenario B — Typical Industrial Logistics Bay:
  • Clear Dimensions: 6.0 m Width × 5.0 m Height = 30.0 m²
  • Curtain Specification: 1.2 mm Solid Galvanized Steel Curved Slat with wind-lock side tracks (Base fabrication: 105,000 – 135,000 EGP).
  • Drive Mechanism: Three-phase industrial side motor, anti-drop safety brake, emergency chain hoist block, and optical safety photocells.
  • Illustrative Turn-Key Budget: 140,000 – 190,000 EGP (Includes heavy curtain fabrication, industrial chain drive, safety system, and structural site mounting).

These examples are for budgeting purposes only; actual quotations may vary based on measured opening dimensions, selected shutter profile, motor capacity, installation conditions, and current material costs.

Shutter Door Installation in Egypt

A professional installation ensures long-term operational reliability, smooth curtain travel, and structural safety. The standard installation workflow follows nine essential steps:

1. Site Survey & Precision Measurement: Checking clear opening width, height, diagonal squareness, and available headroom for the coiled roll bundle.
2. Structural Preparation: Verifying that the concrete lintel or steel sub-frame can support the dynamic dead load of the shutter door.
3. Vertical Guide Track Installation: Fastening U-shaped side channels securely to the wall jambs using heavy-duty masonry anchors.
4. Axle Barrel & Bracket Mounting: Fixing heavy-duty end brackets and hoisting the counterbalanced barrel assembly into position.
5. Curtain Slat Assembly: Feeding the interlocking slats into the side tracks and securing the top slat to the barrel pipe.
6. Electromechanical Motor Integration: Mounting the central or side motor operator and connecting internal drive gears or drive chains.
7. Electrical Termination & Control Wiring: Wiring the control panel, keyed switches, push buttons, optical photocells, and emergency overrides.
8. Travel Limit Calibration: Setting mechanical or electronic upper and lower stopping limits for smooth start and stop cycling.
9. Safety Testing & Commissioning: Testing manual emergency operation, obstacle detection sensors, and running trial operational cycles.

Gatechs Commercial Shutter Door Projects

Gatechs has engineered, supplied, and installed roller shutter systems across major commercial and industrial infrastructure developments in Egypt:

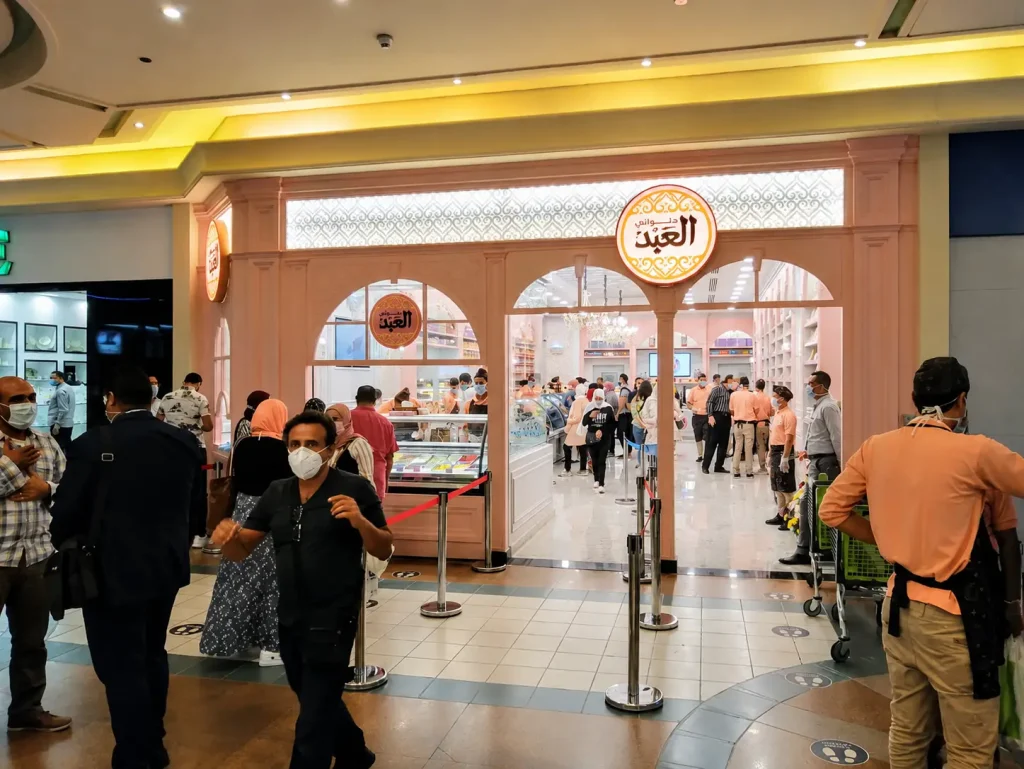

• Multi-Branch Retail Infrastructure (El Abd Patisserie): Delivered automated steel roller shutters across multiple branch locations, engineered for daily cyclic operation, reliable locking, and rapid emergency opening during power cuts.
• High-Footfall Commercial Storefronts (Hamleys Stores): Provided automated store entrance shutters balancing quiet motorization with modern retail display aesthetics.
• National Critical Infrastructure (GIS Power Substations): Fabricated and commissioned heavy structural steel shutters designed to operate reliably in demanding desert environments with high temperatures, dust, and sand exposure.

What Do We Need to Quote Your Shutter Door?

To receive an accurate, engineered quotation from Gatechs, preparing the following project parameters ensures a fast estimation:

• Opening Dimensions: Clear width and clear height of the masonry or steel opening.
• Facility Type: Retail storefront, bank, warehouse, factory, or loading dock.
• Profile Preference: Solid galvanized steel, micro-perforated, extruded aluminum, or specialized powder-coated finish.
• Operation Type: Manual push-up/pull-down or automated motorized system.
• Power Supply on Site: Single-phase (220V) or three-phase (380V) electrical availability.
• Operating Intensity: Estimated number of open/close cycles per day.
• Site Location & Photos: Installation city and site photos showing lintel headroom and side jambs.

Shutter Door Maintenance & Long-Term Cost

Focusing strictly on the lowest initial bid can lead to higher lifetime costs due to premature motor failure or track binding. Minimizing long-term expenses involves three key engineering practices:

• Proper Motor Sizing: Motor sizing should account for total curtain weight, barrel diameter, friction, counterbalance configuration, and duty cycle to prevent thermal shutdowns.
• Certified Corrosion Protection: Quality hot-dip galvanization protects base steel from rust without requiring recurrent surface painting.
• Scheduled Preventative Maintenance: Periodic guide track cleaning, barrel alignment verification, and spring balancing ensure smooth travel. Explore our guide on commercial shutter door maintenance and diagnostic services.

FAQ About Shutter Door Prices

How much does a commercial shutter door cost per m² in Egypt?

Baseline fabrication for steel shutter doors typically costs between 1,800 EGP and 5,500+ EGP per square meter (m²). Turn-key costs depend on your material choice (steel vs. aluminum), slat thickness, motor type, and installation requirements.

How much does a 3 × 3 meter shutter door cost in Egypt?

Base fabrication for a standard 3 × 3 meter (9 m²) solid steel shutter typically costs between 16,200 EGP and 28,800 EGP. When adding a central motor, control switches, and installation, the complete turn-key budget ranges from 26,000 EGP to 40,000 EGP based on site conditions.

What is the difference between a manual and a motorized shutter door?

Manual shutter doors use counterbalance springs and push-up or hand-crank mechanisms. They are economical for small openings with low daily use. Motorized doors use electric operators controlled by remotes, push buttons, or key switches. They provide effortless operation, automated safety sensors, and secure locking for larger, high-traffic openings.

Does the square meter price include the motor and installation?

No. Base square-meter rates cover curtain fabrication, vertical guide tracks, and bottom rails. Drive motors, control panels, safety sensors, and installation are quoted separately based on door weight and site access.

What is included in the total price of a commercial roller shutter?

A complete turn-key quote includes the steel curtain, guide tracks with brush seals, and the axle barrel assembly. It also covers the drive motor, control panel, remote transmitters, bottom safety rail, and on-site installation.

What is the most cost-effective commercial shutter door configuration?

For standard openings, a 0.8 mm galvanized steel curtain paired with a spring-balanced central motor is the most economical choice. It balances physical security, durability, and low initial cost.

How do motorized commercial shutters operate during power outages?

Motorized commercial shutters feature manual override systems. Central drum motors use an armored release cable with a key switch. Heavy industrial side motors include an integrated manual chain hoist for easy operation without power.

Which shutter door profile is recommended for retail shopping malls?

Micro-perforated steel slats are recommended for shopping malls. They allow showcase visibility and airflow after hours while providing a solid physical barrier against intrusion.

Which is better for commercial applications: steel or aluminum shutters?

Galvanized steel is best for large spans and industrial entrances that need high impact resistance and cost efficiency. Extruded aluminum is ideal for architectural storefronts where lightweight design, quiet movement, and corrosion resistance matter most.

How often should commercial shutter doors be serviced?

Commercial shutter doors should undergo preventative maintenance every 6 to 12 months. Routine service includes cleaning guide tracks, checking spring tension, testing safety sensors, and inspecting motor brakes.
